PROTOLON IQ

PROTOLON IQ
REELING CABLE -
3.6/6 KV, 6/10 KV, 8.7/15 KV, 12/20 KV

Medium voltage reeling cable with integrated sensor fiber.

A smart reeling cable system that detects and reports mechanical impact and sudden irregularities on the cable, enabling root-cause analysis and risk-based decisions by ways of sensing technology that can dramatically reduce process interruptions and optimize asset utilization.

APPLICATION

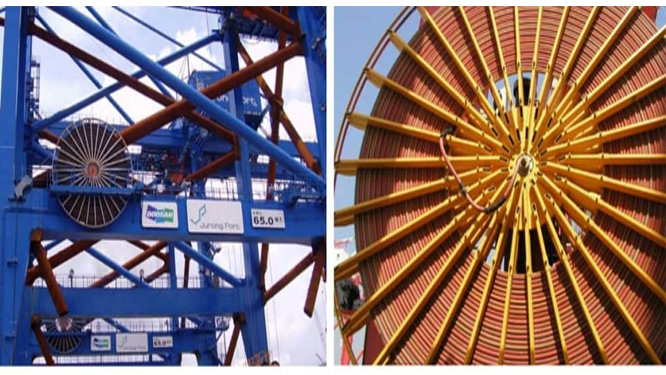

Flexible medium voltage reeling cable with integrated sensor fiber for detecting and analyzing the mechanical and thermal stress acting on the cable during gantry operation.

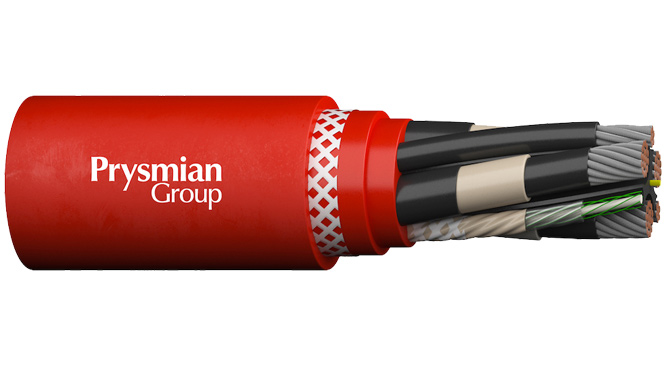

CABLE CONSTRUCTION

The PROTOLON(IQ) reeling cable is a highly flexible MV cable equipped with two fibresensors running through the complete cable. One is measuring the temperature, while the other is checking the strain of the cable as it is elongated and compressed. All the collected data is then sent to the PROTOLON{IQ) Monitoring system.

MONITORING SYSTEM

The PROTOLON(IQ) Monitoring system is a powerful diagnostic instrument for the identification and localization of potential problems. Its inherent high stability and reliability guarantee optimal security for the long-term surveillance of the cables.

SOFTWARE

The raw data recorded automatically by the monitor can be retrieved at anytime by the PROTOLON(IQ) software, for real-time or off-line processing and visualization.

USER INTERFACE

The graphical interface is user-friendly and simple to understand. The take-off point is a simple dashboard on the smartphone or tablet indicating the status on the highest stress points and where they are located along the cable.
